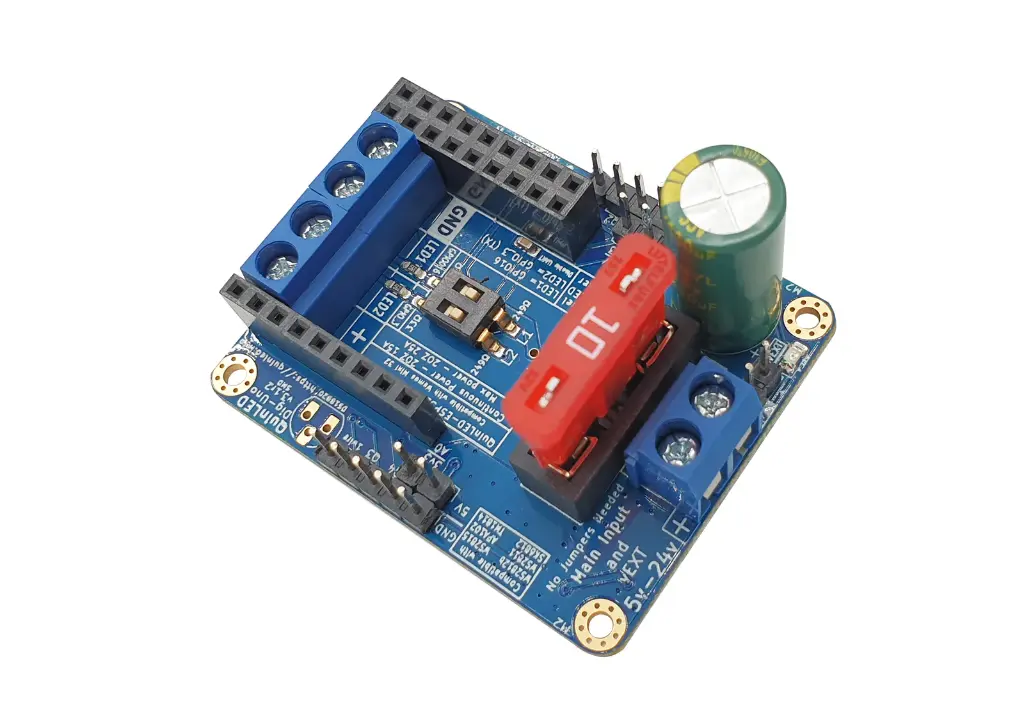

QuinLED Dig Uno v3 DIGITAL LED controller

https://www.jeremsinc.ca/web/image/product.template/26431/image_1920?unique=767cce9
(0 review)

Flexible and easy to use Digital LED controller!

This unit is small but mighty.  Able to handle up to 15A continuous and is designed for digitally addressable LED's, make your LED strip come alive with this easy to use, compact LED controller.

Perfectly integrates into your home automation (Home Assistant Compatible) or easy to use as a stand alone solution! Now even better - with WLED support and Dual Channel!

$ 44.99 44.99 CAD $ 44.99

$ 44.99

Not Available For Sale

($ 0.00 / Units)
  • Dig Uno Config Options

This combination does not exist.

quinled
Contact Us

Terms and Conditions
Shipping: 1-2 Business Days for in stock items

Share

Technical details:

  • QuinLED ESP32 based programmable LED controller pre flashed with WLED Firmware
  • Home Assistant Integration with WLED or ESPHome
  • Choice of 3 different ESP32 module variants
    • QLD-DUV3 - AB (Antenna Board)
    • QLD-DUEV3 - AE (Antenna External) (incl. ext. antenna)
    • QLD-DUV3LAN - ABE (Antenna Board + Ethernet)
  • Dual Channel controller (when using WLED 0.12.0 or later)
  • Official WLED support
  • Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
  • Integrates with MQTT or Home Assistant native API (use WLED FW)
  • Remote control available via Android or iOS app (WLED FW)
  • Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
  • Auto 5vEXT with 5v-24v compatibility
    • 2x pin header near input terminals to provide 5vEXT power
    • Because of the custom DC-DC circuit on the board 5vEXT now accepts 5v-24v input for standby power
    • No need for a second 5V source when using 12/24V LED's
  • High current handling (up to 15A)
  • On-board fuse and reverse polarity protection
  • Compatible to 5V*, 12V** and 24V LED strips, strings or panels
  • 6 GPIO pins (e.g. PS Relay, IR control or I2C display)

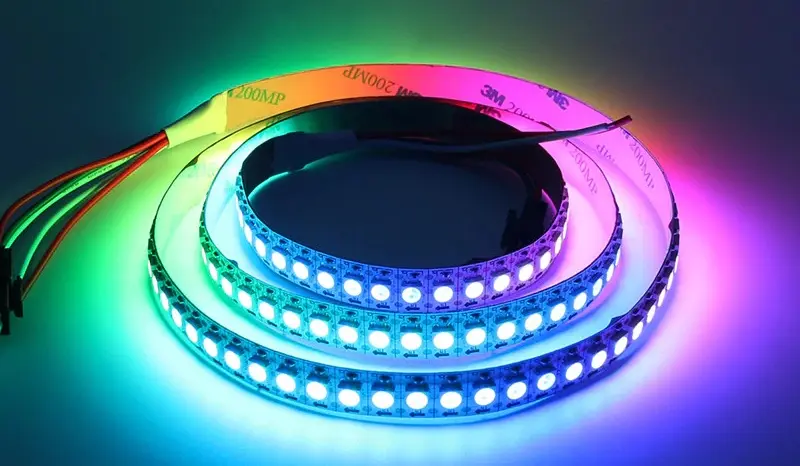

  • Works with most currently available LED strips/strings or panels*

* ws2811, ws2812b, sk6812, APA102

**ws2811, ws2815

Product content:

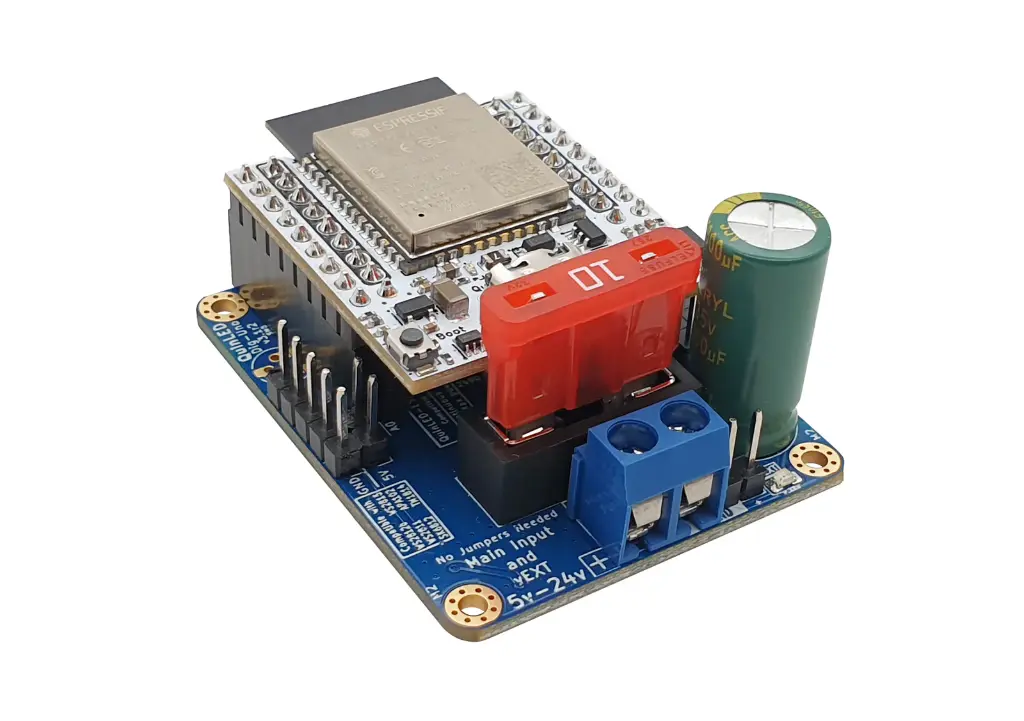

  • QuinLED Dig Uno v3.1r2 LED controller
  • QuinLED-ESP32 WIFI module with USB-C interface
  • Pre flashed WLED firmware for instant use
  • please check the different product variants available

Accessories

Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link,  your price does not change and it doesn't affect any deals or coupons either.

Power Supply:

We always suggest Meanwell power supplies, very reliable and actually give you the power they state.

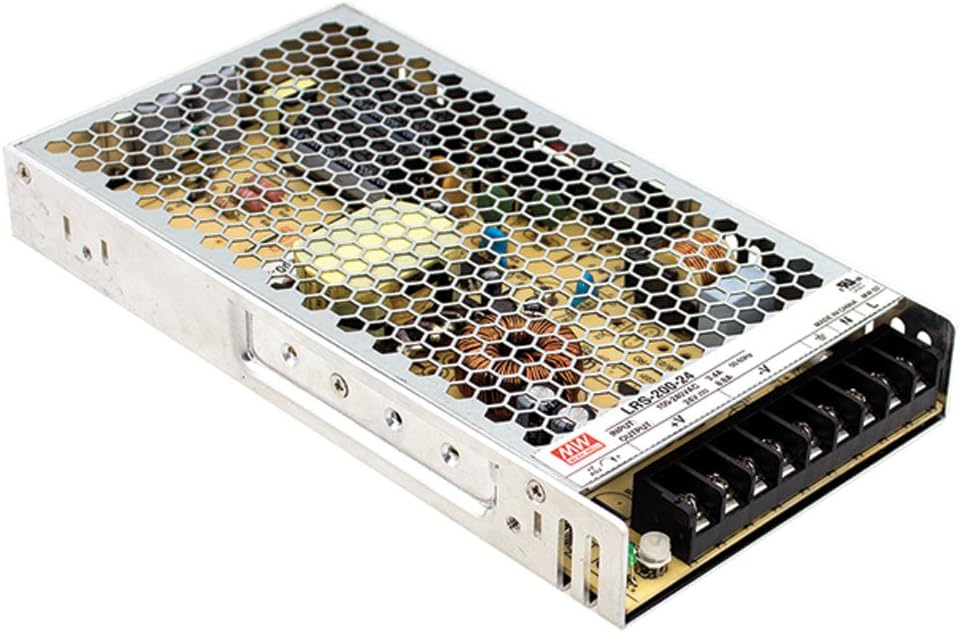

350W Available in Multiple Voltages (Fan)

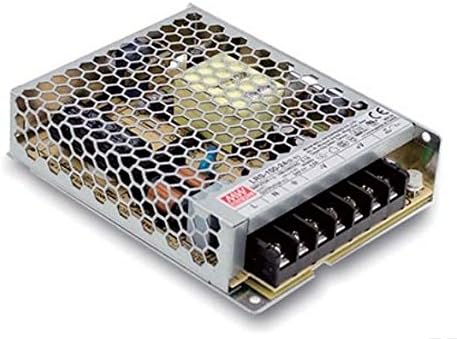

200W/100W Available in Multiple Voltages (Fan less)

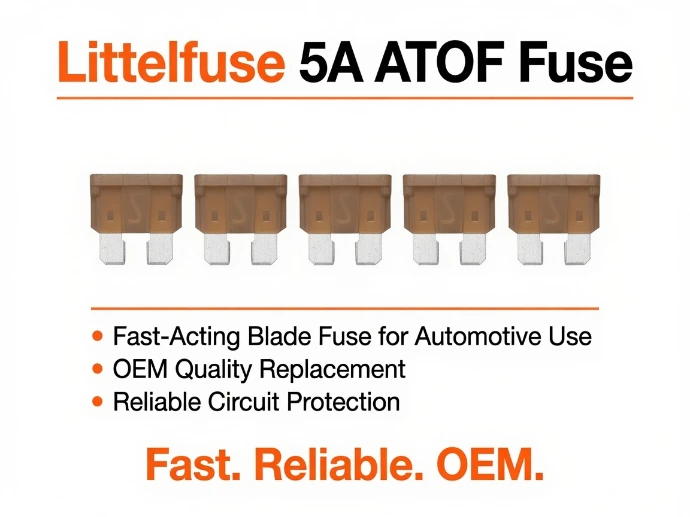

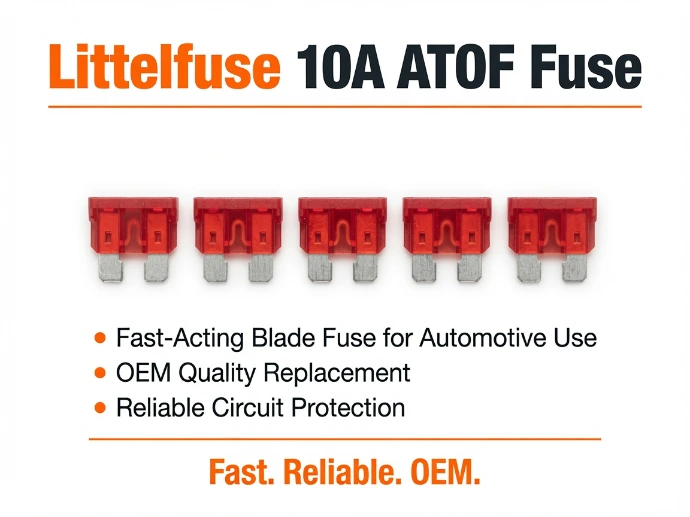

Fuses:

You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares.  There is a lot of cheap versions on fuses on amazon, I've used the below fuses without much issue but if you want a quality fuse stick with Littlefuse or Bussman Fuses

  ​ ​ ​

​


Misc. Accessories:

We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
