Product specifications:

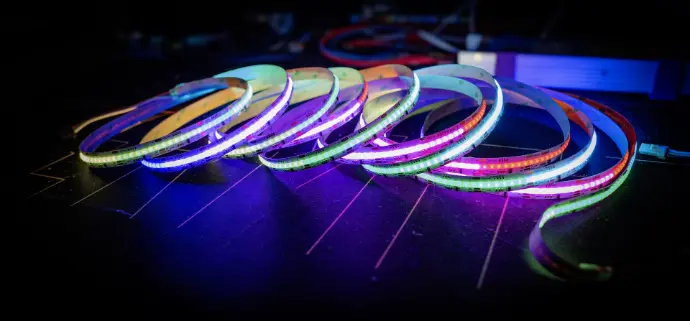

- COB strip with 896 diodes per meter (often referred to as 896LEDs/m)
- Per meter there are 224x Red, Green, Blue and White diodes
- Each addressable zone consists of 7x Red, Green, Blue and White diodes
High resolution
- 3.125cm zones individually controllable
- 32 zones per meter
- 160 zones per 5m/16ft strip
High power (very bright!)
- 24v only strip
- Single color uses up to 70w per 5m/16ft
- Watt/m figures are kind of meaningless, please use the real-world powersheets (See HERE)
- If you have to have a number I guess it would be 40w/m!
RGBW
- Available only in RGBW with W being a warm 3000k (not 3200k+)
- CRI90+
- CRI is ~93 to 94
- R9 ~60
Low Flicker
- WS2814 based
- 4kHz PWM frequency for the LEDs
Available as IP30 or in IP65 molded sleeve
- Comes with 20AWG wires for both versions
- Included pigtails are also 20AWG wire versions
- Connectors:
- Non-Waterproof has JST SM connectors
- Waterproof has JST JWPF connectors
12mm wide COB strip
- Strip is made with 50cm parts soldered together!
Compatible with any software that supports the ws2814 chipset

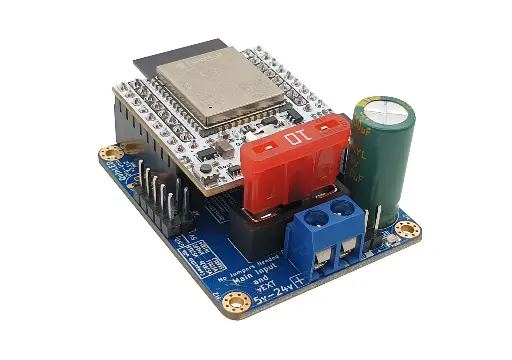

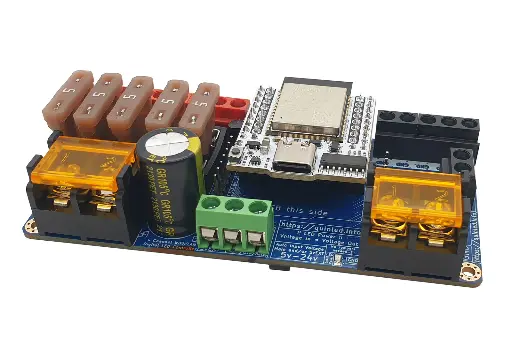

- Please use controller with good level-shifter and data output circuit, such as QuinLED controllers!
- NOT compatible with 3.3v data signal
WLED Compatible
- BGR + W&G swap
Certificates
- CE / RoHS
Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link, your price does not change and it doesn't affect any deals or coupons either.
Power Supply:
We always suggest Meanwell power supplies, very reliable and actually give you the power they state.
Fuses:
You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares.
Misc. Accessories:
We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adheseive Lined Heat Shrink to help make water tight connections
