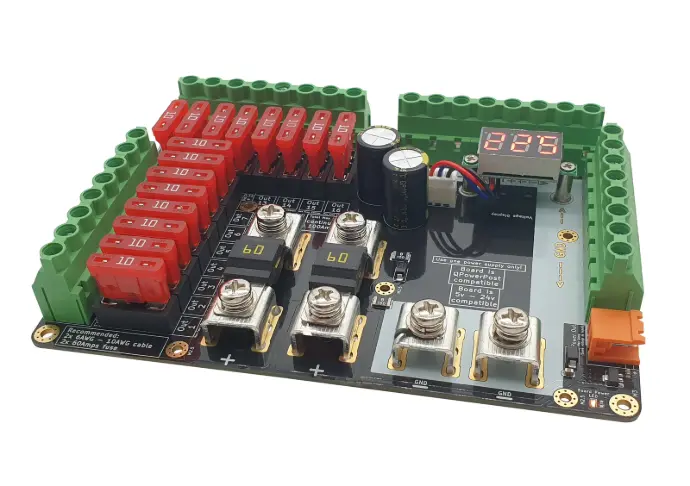

QuinLED Dig-Octa Power-7 High Current
The Dig-Octa Power-7HC power board provides up to 100A current via a high number of 32 screw terminals.
Power-7HC has increased copper thickness, 2x M5 bare screw power terminals which are equipped with 2x 60A fuses.
Pairs perfectly with the Dig-Octa Brainboard.
Check out the Getting Started Guide.
Product Specifications:
- 2x M5 bolt lugs for both positive and negative
- Board recommended max 100Amp continuous load total
- 16x 7.62mm output screw terminals
- 5v-24v capable
- “Broken Fuse” light per output
- Onboard capacitors
- Onboard Voltage display
- 4x M3 mounting holes
Special Features:
- Equipped with QPowerPost* (power distribution without wires)
- Extra 1x 5.08mm pluggable terminal (VCC and GND out)
- Double up feature**
*QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature. It allows a flexible and quick installation of the complete stack and works without additional wiring.
** If more power (up to 20Amps) or a thicker cable is required, using a SV5.5-5 fork crimp 2 positive and 2 negative output terminals can be combined allowing up 10AWG/5.2mm2 cable to be connected over 2 output ports
Videos on the Dig-Octa System
More information:
Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link, your price does not change and it doesn't affect any deals or coupons either.
Power Supply:
We always suggest Meanwell power supplies, very reliable and actually give you the power they state.
Fuses:
You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares. There is a lot of cheap versions on fuses on amazon, I've used the below fuses without much issue but if you want a quality fuse stick with Littlefuse or Bussman Fuses
Misc. Accessories:
We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
