QuinLED Dig-Octa Power-5 High Voltage
The Dig-Octa Power-5HV power board provides stable power distribution for high voltage between 24V and 48V to natively support e.g. Govee or puck style RGBW lights.
This is a special version of the board that allows use of 24 to 48V lighting strips!
It is stackable and has the standardized form factor of all power boards in the Dig-Octa line of products.
It is stackable and has the standardized form factor of all power boards in the Dig-Octa line of products. 24V to 48V compatible power board rated up to 30A continuous.

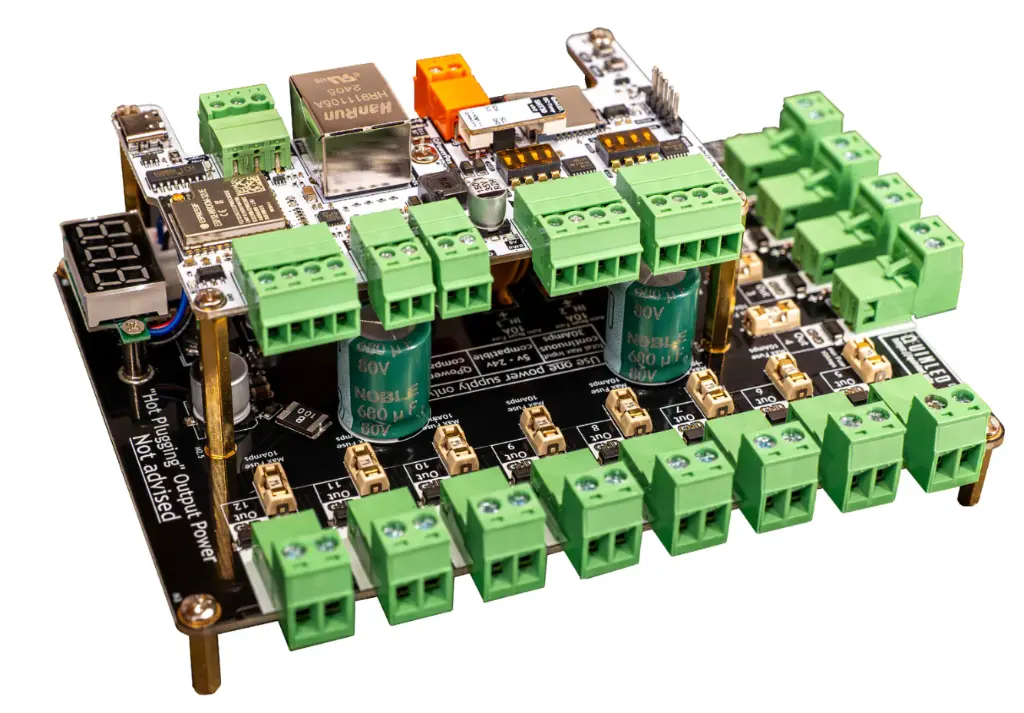

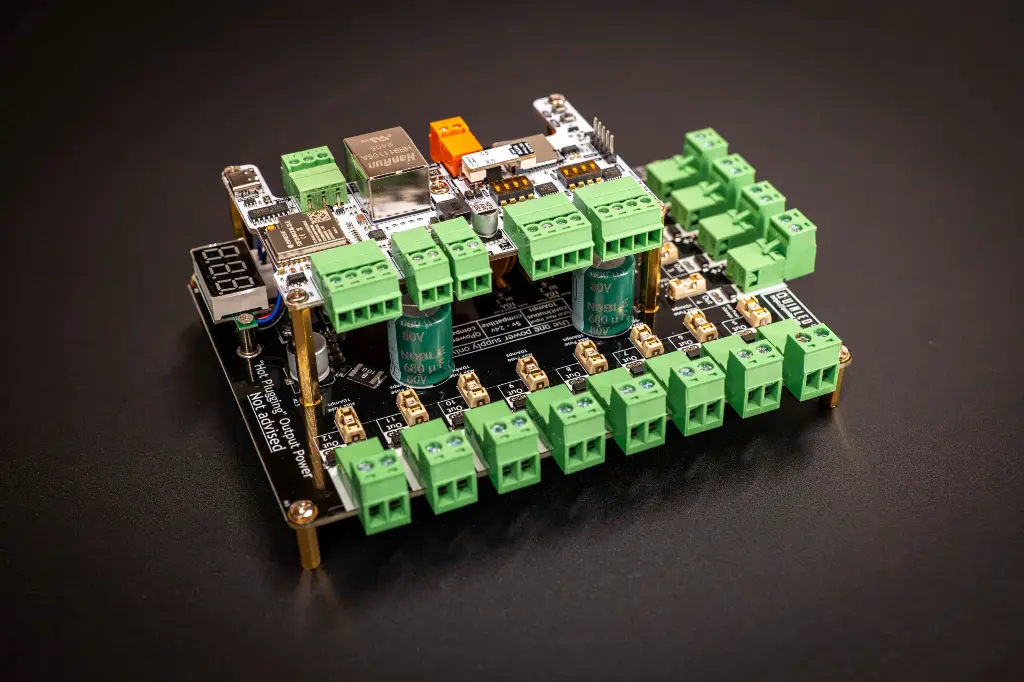

Pairs perfectly with the Dig-Octa Brainboard.
Check out the Getting Started Guide.

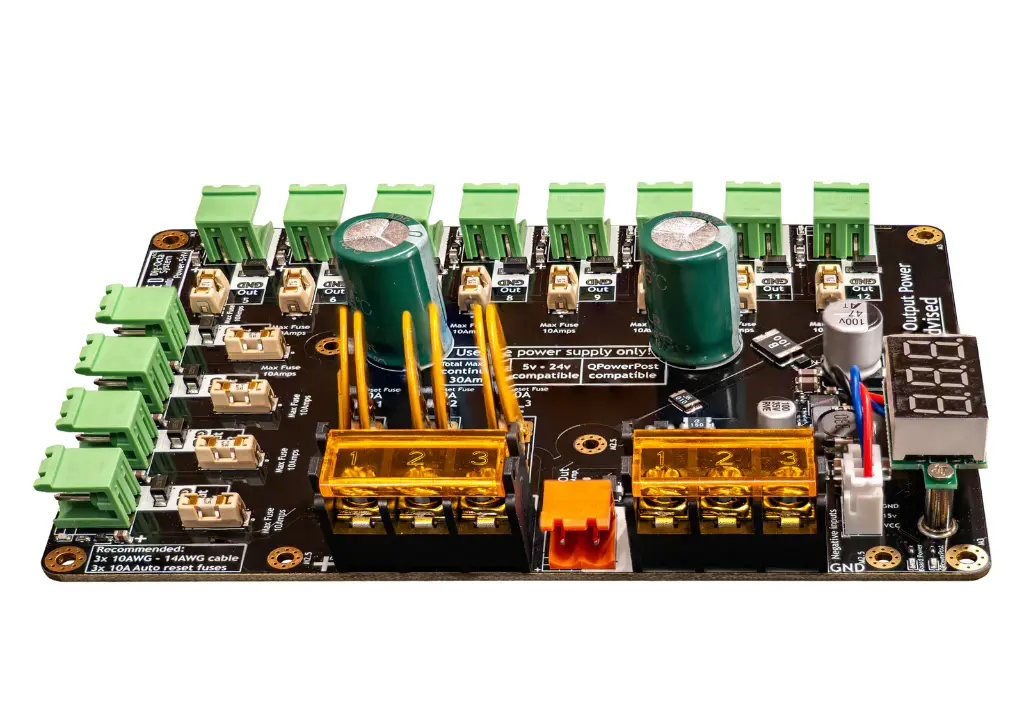

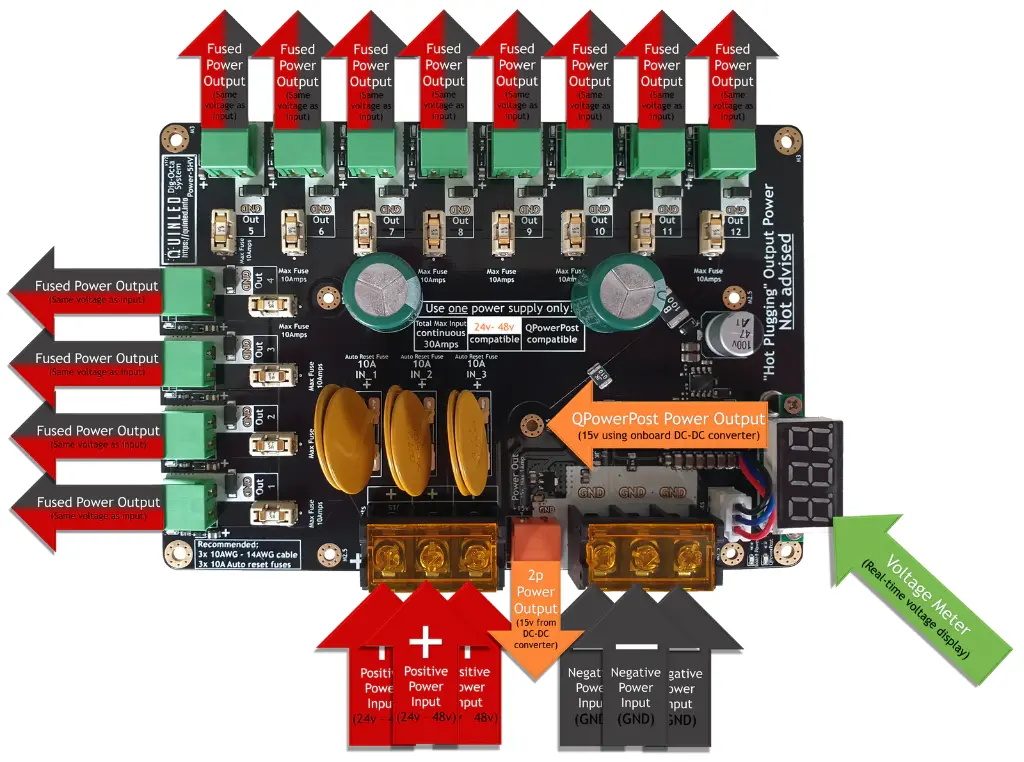

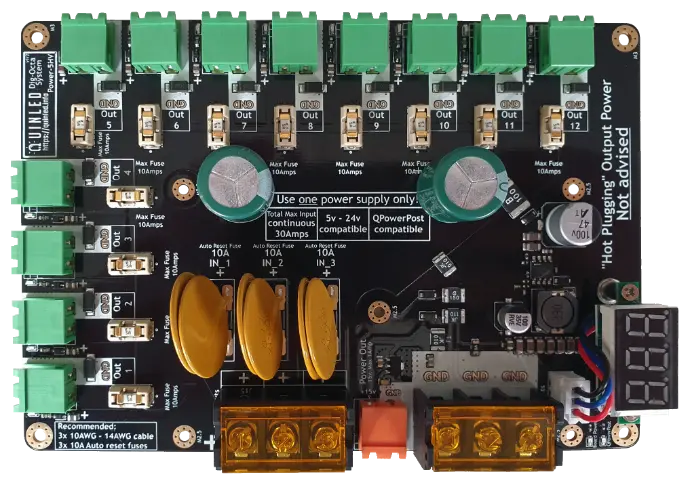

Product Specifications:
- 3x 9.5mm “barrier block” input terminals for both positive and negative
- Board recommended max 30Amp continuous load total
- 12x 5.08mm pluggable output terminals
- 24v-48v capable
- “Broken Fuse” light per output
- Onboard capacitors (2x 680F 80v big capacitors)
- Onboard Voltage display
- 4x M3 mounting holes
Special features:
- Equipped with QPowerPost* (power distribution without wires)
- Additional 1x 5.08mm pluggable terminal (VCC and GND out)
- Fully protected (Max 1.5Amps out, PTC auto-reset fuse)

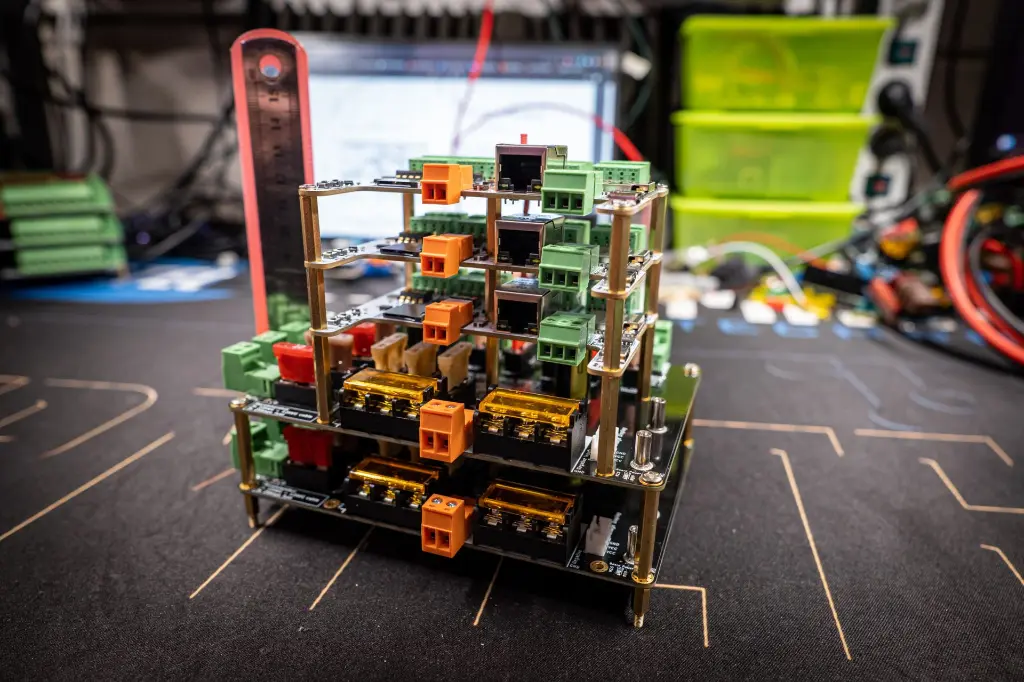

*QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature. It allows a flexible and quick installation of the complete stack and works without additional wiring.
Videos on the Dig-Octa System
More information:
Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link, your price does not change and it doesn't affect any deals or coupons either.
Power Supply:
We always suggest Meanwell power supplies, very reliable and actually give you the power they state.
Fuses:
You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares. There is a lot of cheap versions on fuses on amazon, I've used the below fuses without much issue but if you want a quality fuse stick with Littlefuse or Bussman Fuses
Misc. Accessories:
We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
