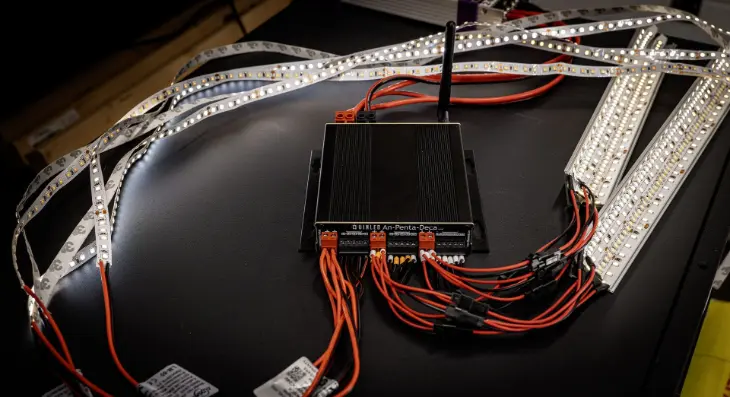

QuinLED AN-Penta-Deca
The An-Penta-Deca is an ESP32 based 15 channel Analog LED controller. It’s designed to be able to run medium power Analog/PWM/Dumb LED strips. With it’s 15 Analog channels it’s capable of running up to 3x RGBCCT LED strips which can be controlled independently or the 15 channels can be configured as you see fit with single, RGB, RGBW or RGBCCT channels.
The An-Penta-Deca is capable of handling a high amount of current although each output channel is of the “medium” (max 5A) category individually.
The An-Penta-Plus is 100% compatible with WLED and/or ESPhome for standalone or centrally controlled natively with Home Assistant. With it’s internal user replaceable fuses it’s a safe option to leave running 24/7 in your home, shop or whatever project you have!
- 15x PWM LED Medium Power output channel (up to 3x RGBCCT)
- Medium current 5A PWM outputs
- High PWM frequencies capable
- 12v-48v compatibility
- External antenna
- USB-C programmability
- Dedicated Button input terminals
- I²C expansion port for sensors, etc.
- Fused positive outputs
- User replaceable fuses to be able to run a safe 24/7 install
- Delivered with WLED pre-installed
- Also great for ESPhome
- Perfect compatibility with Home Assistant
Micro-Controller and Connectivity
- Based on the Espressif ESP32 Micro-controller chip
- 2.4Ghz WiFi connection with External Antenna
- USB-C plug with programming capability
- USB-C ESD protection chip
- Expandability and no lockdown!
- No hardware lock-downs (you buy it, you own it!)
- No problem installing updates to firmware
- Program whatever you want to it!
- Great WiFi coverage
- Using an external antenna, although small, WiFi reception is strong and allows for easier placement in your house or project location.
- Optional Internal Temperature sensor (Add-on board, see Expandability section)
Power and Dimming/PWM
- High Voltage capable
- The QuinLED An-Penta-Deca is 12v-48v compatible
- 48v support enables new generation LED strips with less voltage drop issues over long distances!
- Please see the power handling article for more details surrounding that subject
- The QuinLED An-Penta-Deca is 12v-48v compatible
- Power Supply friendly
- Fully custom DC-DC stage for internal power conversion (board electronics only)
- Includes multiple built-in protection circuits
- Custom capacitor circuit layout with multiple capacitors per positive output channel to prevent current spiking for the power supply (and over the power wires) as much as possible
- “Low noise” PWM dimming
- Design is fully optimized to prevent any “PWM noise” coming from the controller or power supply as much as possible!
- Fully custom DC-DC stage for internal power conversion (board electronics only)
- Built-in Fuses
- Internally fused positive output channels
- 6x 6.3A user replaceable fuse
- 1 on each positive output channel
- Onboard electronics have their own auto-reset fuses
- 6x 6.3A user replaceable fuse
- Internally fused positive output channels
- High Quality modern MOSFET packages
- Including 10v MOSFET drivers and resistors to create smooth PWM in conjunction with the custom capacitor circuit
- Allows better dimming granularity, especially at higher bit depths
- Tuned MOSFET circuit
- Ability to dim to low levels
- Medium current handling of up to 5A per channel
- “Slowed down” PWM pulse to be more EMI compliant
- Designed to run ~20kHz PWM without a problem
- Freewheeling (Flyback) Diodes
- To prevent back feed from blowing up the MOSFETs
- Including 10v MOSFET drivers and resistors to create smooth PWM in conjunction with the custom capacitor circuit
Flexibility and Current capabilities
- 15x analog PWM output channels
- 15x “medium” power channels up 5A
- Because of programmability of the controller these can be used “as seen fit” such as:
- 15x white individually controllable
- 7x CCT
- 5x RGB
- 3x RGBW
- 3x RGBCCT
- Or any combination of the above!
Expandability
- Stemma QT/Qwiic connector allows easy expansion with I²C devices
- Hooks into existing eco system providing easy to buy and hook up sensors such as:
- Temperature sensors
- Humidity sensors
- Light sensors
- extra input pins, etc.
- Can also be used as 2x GPIO, 3v3 and GND connector for custom accessories
- Hooks into existing eco system providing easy to buy and hook up sensors such as:
- Multiple button input, 3v3 and GND terminals
- 3x Button inputs with HW debounce circuit
- Rotary encoder possible using 3x input!
- 1x GPIO input without circuit, can be freely used for other applications!
- 3x Button inputs with HW debounce circuit
- Onboard QuinLED I²C temperature sensor socket
Housing
- Housed in a strong aluminum housing with clear labelling, Software and integration
- 100% Native WLED and ESPhome compatible
- Built around hardware that is natively compatible with ESPhome and WLED
- Multiple ways to natively integrate board into Home Assistant
